1. Direct engine drive.
2. Driven by vehicle engine, this is designed for 40m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.
3. OEM customized service are avaliable.
4. Low operational cost and service cost.
5.Easily installation.
6.Suitable for long distance transportation.

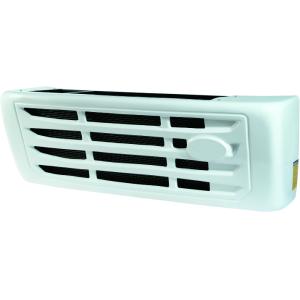

HT-880 truck VAN refrigeration Unit for 40m3 box volume
Features:
► Eco-friendly refrigerant R404A (R134a system is also avalible).
►Corrosion resistant and high strength FRP canning material.
► Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.
► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.
► Strong reliable and stable compressor for R404a systems specially.
► Digital display control panel,minimal operation.
► HP and LP switch safety protection.
► Large cooling capacity, reliable performance.
Product Pictures:
| Unit Model | HT-780 | |
| Applicable Temperature(℃) | -25°C To +25°C | |
| Box Volume (m³) | ≤32m³ | |
| Cooling Capacity (W) | 0℃/+30℃ | 7300 W |
| -18℃/+30℃ | 4350 W | |
| Compressor | Model | GY21 |
| CC | 209 CC | |
| Lubricating Oil | PAG 68 | |
| Evaporator | Material | Inner grooved copper tube |
| Number of Fans | 3 PCS | |
| Condenser | Material | Parallel flow condenser |
| Number of Fans | 2 PCS | |
| Refrigerant | R404a | |
| Refrigerant Charge | 3.0KG | |
| Box Temperature Adjustment | Electronic digital display | |
| Safety Protect | High and low pressure switch | |
| Defrosting | Hot gas defrost automatically | |
| Weight/Dimensions | Evaporator | 33 KG |
| Condenser | 55 KG | |
| Evaporator | 1240*600*345 | |
| Condenser | 1480*500*510 | |
| Drive Model | Non-independent engine driven | |
